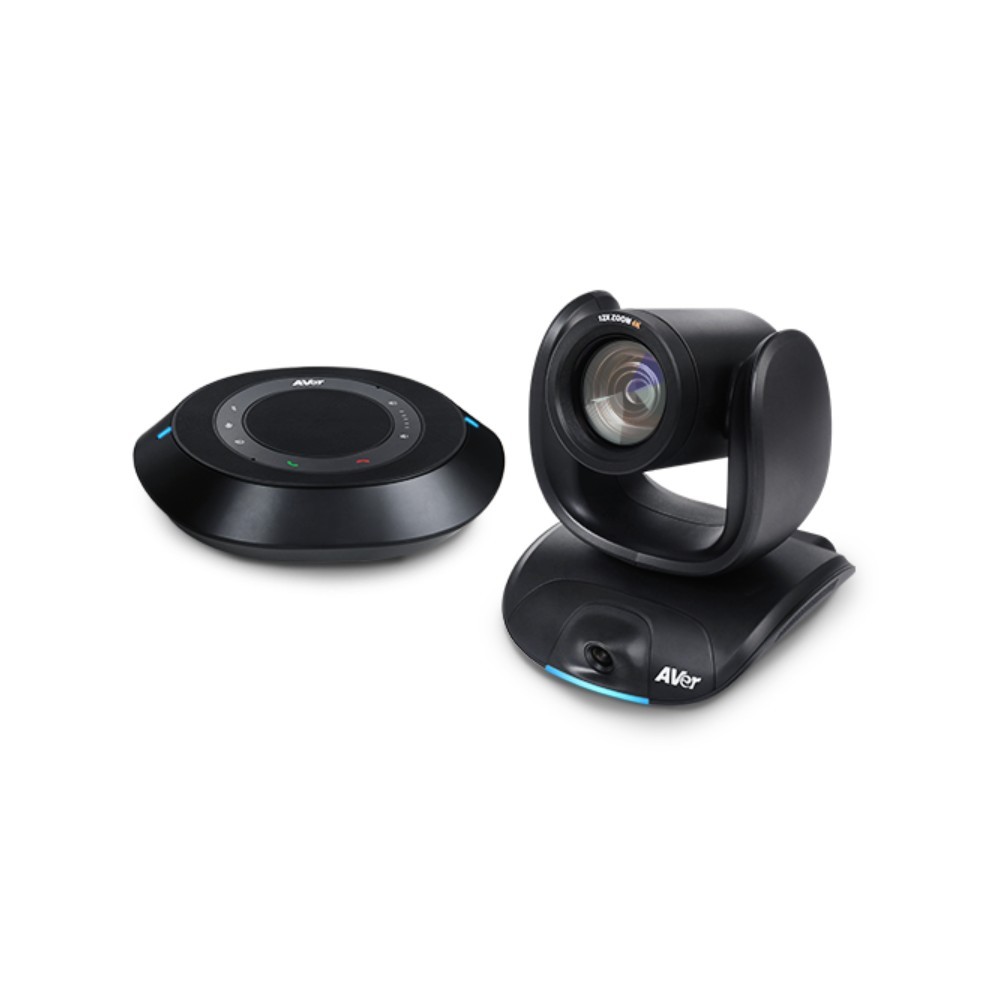

The upgraded VC550 delivers unprecedented audiovisual quality with AVer’s Scalable Speakerphone technology, flexibly fitting in to mid to large rooms. 4K dual-lens technology plus 24X total zoom offers precise and clear viewing of meeting rooms and participants. Equipped with an AI lens for automated PTZ functionality, the VC550 delivers a full view of meeting attendees. The Smart Gallery feature pictures each meeting participant for clear viewing from the remote side. The VC550 provides a premium audiovisual experience. Embedded with daisy-chain technology, the VC550 can be expanded by adding up to four additional microphones or two speakerphones to provide full coverage. Specifications Dual Lens Camera (CAM550) PTZ optical zoom lens Image Sensor: 1/2.8” 4K Sony Exmor CMOS Frame rates: (16:9) 4K 30fps; 1920 x 1080, 1600 x 900, 1280 x 720, 960 x 540, 848 x 480, 800 x 448, 640 x 360, at 60, 30, 15fps; (4:3) 1280 x 960, 800 x 600, 640 x 480 at 60, 30, 15fps 24*X Zoom: 12X optical; 2X digital zoom Wide field of view: DFOV 85°; HFOV 76°; VFOV 46° Lens focal length: 3.9mm (wide) ~ 47.3mm (tele) Lens F#: 1.8 (wide) ~ 2.8 (tele) AE, white balance: auto, manual override via Room Management Minimum focus distance: 1.5m Motorised Pan & tilt: Pan: ±170°;Tilt: +90° (up) -30° (down) Preset number: 10 via IR remote, 128 via RS232 Secondary fixed lens (AI lens) Image Sensor: 1/2.5” 4K Sony Exmor CMOS Frame rates and resolution set according to PTZ lens settings Wide field of view: DFOV 95°; HFOV 78°; VFOV 50° *Please use Room Management to set up 24X zoom *Please don't put the CAM550 on the table. This will block the view of AI lens and the AI detection function will malfunction. The suggested installation height is 1.5m away from the floor. Speakerphone (FONE540) Wireless Bluetooth / USB Wired for PC Full duplex microphone array speakerphone Two omnidirectional microphones support 360° pickup Full duplex echo cancellation Advanced noise suppression Powerful wideband voice processing Speaker volume: adjustable to 90 dB SPL at 0.5 m 3.5 mm line-in (aux) cable connects BYOD smartphones or PCs to use as speakerphones Touch controls for volume adjustment, mute, phone input, call, and hang up Can bridge phone-in and USB into one call Kensington lock HDMI & PoE HDMI 1.3: 1080p 30fps/ 60fps PoE+: 802.3at Video Format YUV, YUY2, MJPEG Network video compression format: H.264, H.265 Network protocol: RTSP, RTMP USB 3.1 Gen 1, backward compatible with USB 2.0 UVC 1.1 (USB video) Control Camera IR remote control VISCA/pelco P/pelco D via RS232 (128 preset points via VISCA command) Remote side: VISCA over IP, IP (RJ45) UVC plug and play WebUI: Browser IP access via Chrome (Not support IE) OSD setting: HDMI out to TV monitor Room Management Support Speakerphone UAC, plug and play WebUI: Browser IP access via Chrome (Not support IE) Room Management Support Free Applications for Meeting Collaboration (For Windows® and Mac® computers) EZManager 2: Camera Central Management Software Remotely group FW/SW upgrades, control the camera, and manage settings Room Management: Camera Settings Software Smart gallery/Virtual USB streaming/Preset Link View live video, participant metrics, and meeting-interval information Enable Skype for Business far-end control Upgrade firmware automatically/manually Control the camera Set parameters and adjust the camera image View operation status, diagnose issues EZLive: Broadcasting Software Multi-camera real-time streaming, annotating, image capturing, and video recording Connectivity Camera USB type-B 3.1 connector, backward compatible with USB 2.0 12V/2A DC jack power adapter Mini DIN9 for RS232 in & out connection (VISCA control panel and camera daisy-chain) IP (RJ45) HDMI Speakerphone USB2.0 Micro USB connector 12V/5A DC jack power adapter LAN for IP remote access Expansion port (daisy-chain speakerphone or microphone) 3.5 mm phone-in jack 3.5 mm line out System Requirements Windows® 7/10/11 MacOS X 10.14 or later Chromebox 3 version 94.0.4606.114 or later Package Contents CAM550 unit FONE540 unit Power adapter x2 Power cord x2 USB3.1 Type-B to Type-A cable (3 m) for camera Micro USB 2.0 to Type-A cable (5 m) for speakerphone Remote control Mini DIN9 to mini DIN8 RS232 adapter cable HDMI cable (3 m) 3.5 mm aux cable Wall mount bracket and screws QR code card Tripod screw Compatible Applications - Zoom, Microsoft® Teams, Skype, Skype for Business, Google Meet, RingCentral, BlueJeans, Intel® Unite™, Fuze, Adobe® Connect™, CyberLink U Meeting®, Cisco WebEx® GoToMeeting™, LiveOn, Microsoft® Lync™, TrueConf, V-Cube, Vidyo, vMix, WebRTC, Wirecast, XSplit *For 4K UHD support, please check system/hardware requirements with your software application provider.
