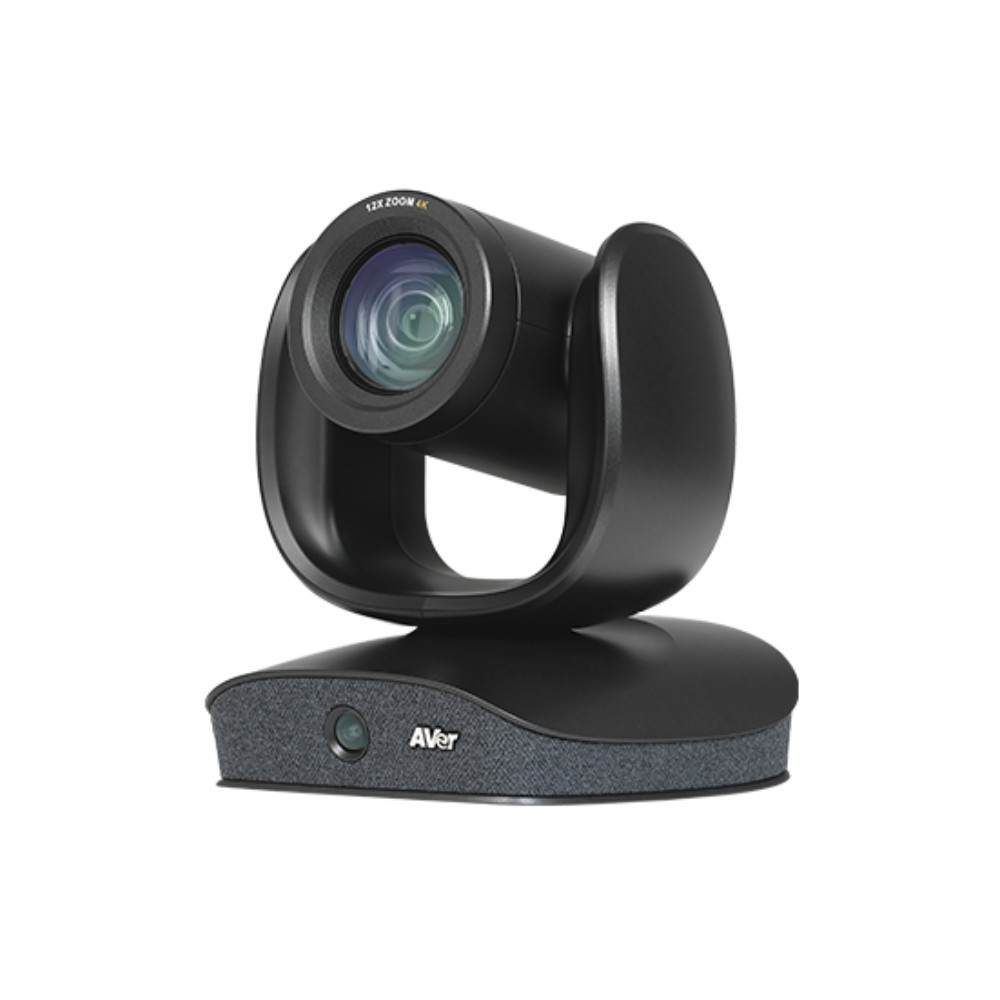

AVer CAM570 is a 4K dual lens camera with a 36X Total zoom PTZ camera and a second AI lens with 95°FOV. Equipped with built-in audio sensor, CAM570 detects human voices up to 10M and offers audio tracking function. AI technology such as Smart Gallery and gesture control can capture every attendees up-close with premium video quality. Specifications Dual Camera PTZ optical zoom lens Image Sensor: 1/2.8” 4K Sony Exmor CMOS Frame Rates: (16:9) 4K 30fps; 1920 x 1080, 1600 x 900, 1280 x 720, 960 x 540, 848 x 480, 800 x 448, 640 x 360, at 60, 30, 15fps; (4:3) 1280 x 960, 800 x 600, 640 x 480 at 60, 30, 15fps 36X Zoom*: 12X optical; 3X digital zoom Viewing Angles: DFOV 90°; HFOV 78°; VFOV 50° Lens Focal Length: 3.4mm (Wide) ~ 40.3mm (Tele) Lens F#: 1.8 (Wide) ~ 3.6 (Tele) Wide Dynamic Range (WDR): Superb backlight compensation Minimum Focus Distance: 1.5 m Viewing Area: Pan: ±170°; Tilt: +90° (up) / -30° (down) Preset Positions: 10 via IR remote, 128 via RS-232 Image flip and image mirror Secondary fixed lens (AI lens) Image Sensor: 1/2.5” 4K Sony Exmor CMOS Frame rates and resolution set according to PTZ lens settings Wide field of view: DFOV 95°; HFOV 82°; VFOV 52° *Please use Room Management (PTZApp 2) to set up 36X zoom *Please don't put the CAM570 on the table. This will block the view of AI lens and the AI detection function will malfunction. The suggested installation height is 1.5m away from the floor. *When the resolution is set to 4K or the frame rate to 60fps, features including PIP, Image Flip, Image Mirror, and OSD (On Screen Display) Setting will be disabled automatically. Audio Sensor Audio pick-up range: 10m, ±60° 3 pairs of sensor, each composed of 4 sensors * The built-in sensor is for the audio-tracking function, it cannot be used as an audio source for video-conferencing software. Connectivity USB type-B 3.1 connector, backward compatible with USB 2.0 12V/2A DC jack power adapter Type Non-B Mini DIN 9 for RS-232 in & out connection (VISCA control panel and camera daisy-chain) IP (RJ-45) HDMI Audio in* (1Vrms input) *To avoid tracking the speakerphone, please insert speakerphone's Line-out to CAM570's Line-in port. USB 3.1 Gen 1, backward compatible with USB 2.0 UVC 1.1 (USB video) Control IR remote control VISCA/pelco P/pelco D via RS-232 (128 preset points via VISCA command) Remote side: VISCA over IP, IP (RJ-45) UVC plug and play WebUI: Browser IP access via Chrome. (Not support IE) OSD setting: HDMI out to TV monitor Room Management (PTZApp 2) Software Tools Room Management (PTZApp 2) - Supports Windows® 7 or later, macOS® 11.6 or later Enterprise Management (PTZ Management) - Supports Windows® 10 or later Cloud Management - Supports Chrome™ & Microsoft Edge browsers EZManager 2 - Supports Windows® 7 or later EZLive - Supports Windows® 7 or later System Requirements Windows® 7/10/11 Mac OS X 10.14 or later Chromebox 3 version 94.0.4606.114 or later Hardware Specs 3.2 GHz Intel® Core™ i5-4460 processor 4 GB RAM or more USB 3.1 port, backward compatible with USB 2.0 Compatible Applications Zoom, Microsoft® Teams, Google Meet™, Intel® Unite™, RingCentral, BlueJeans, V-Cube, LiveOn, CyberLink U Meeting®, TrueConf, Adobe® Connect, Cisco Webex®, Fuze, GoToMeeting™, VidyoConnect™, vMix, WebRTC, Wirecast, XSplit *For 4K UHD support, please check system/hardware requirements with your software application provider. **Specifications may vary depending on countries and are subject to change without notice.
