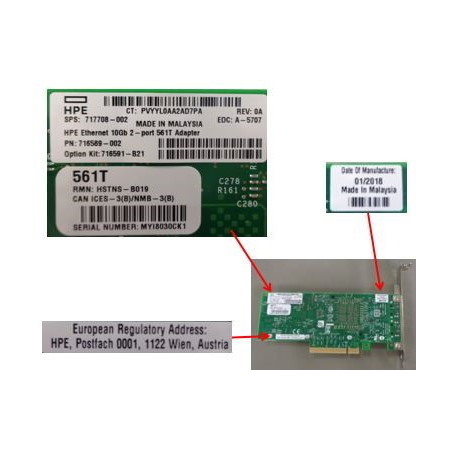

The HP Ethernet 10GbE dual port 561T adapter features the latest generation 10 GbE Intel® Ethernet Controller X540. The HP 561T is a low cost, low power dual port 10GBASE-T adapter designed for use in HP ProLiant Gen8 rack, tower, and scalable servers.
The HP 561T addresses the demanding needs of the next-generation data center by providing unmatched features for virtualization, and scalability to keep up with the HP ProLiant Gen8 server platform, with proven and reliable performance HP customers have come to expect. The HP 561T adapter enables connections with standard CAT6 or better UTP cabling. The HP 561T supports high performance networking features such as VLAN tagging, Low latency interrupts, TCP and UDP checksum offloading, MSI-X, NIC teaming (bonding), Receive Side Scaling (RSS), WOL, jumbo frames, PXE boot and virtualization features which are VMDq and SR-IOV ready.
- General Information
- Manufacturer
- Hewlett Packard Enterprise
- Manufacturer Website Address
- https://www.hpe.com/au/
- Brand Name
- HPE
- Product Type
- 10Gigabit Ethernet Card
- Interfaces/Ports
- Total Number of Ports
- 2
- Network (RJ-45)
- Yes
- USB
- No
- Serial Port
- No
- Ethernet AUI
- No
- XJACK
- No
- PoE (RJ-45) Port
- No
- Number of Network (RJ-45) Ports
- 2
- Media & Performance
- Media Type Supported
- Twisted Pair
- Twisted Pair Cable Standard
- Category 6
- Data Transfer Rate
- 10 GB/s
- Network & Communication
- Network Technology
- 10GBase-T
- InfiniBand
- No
- Physical Characteristics
- Height
- 190.5 mm
- Width
- 57.2 mm
- Length
- 241.3 mm
- Weight (Approximate)
- 453.6 g
- Miscellaneous
- Platform Supported
- PC
- System Requirements
Compatible operating systems
- Microsoft Windows Server 2008, Server 2012, HPC Server 2008, Small Business Server 2011, Multipoint Server 2011
- Hyper-V
- RHEL 5.7/5.8/5.9/6.1/6.2/6.3
- SLES 10 and 11
- Solaris 10/11
- VMware vSphere 4.1 and 5.0
- Citrix XenServer 6.0/6.1
- Environmentally Friendly
- Yes
