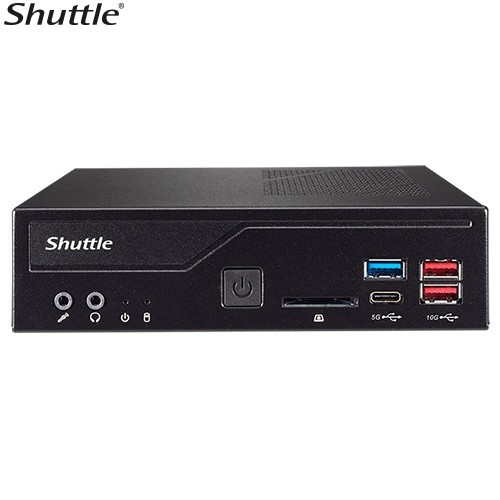

Shuttle DH670 12TH Gen Intel Core™ AI-Enhanced Slim PC Ultra-Visual Upgrades: Four Displays Productivity

  • Part: 1917407
  • Model: DH670
$764.50

Availability

In Stock

Shuttle DH670 Slim Mini PC 1L Barebone-Support Intel 12th Gen, 2x DDR4, 2.5' HDD/SSD bay, 2xLAN, 2x RS232(RS422/485), 2xHDMI, 2xDP, 120W Form Factor 1.3L chassis Processor Support Intel 12/13th LGA1700 socket Core i3/i5/i7/i9, Pentium, Celeron 65W Processor BIOS v2.05 and updated version support Raptor Lake (13th) CPU Chipset Intel H670 Express Chipset Memory 2x DDR4 SODIMM slots,32GB per DIMM (Max 64GB) DDR4 up to 3200 MHz Video Output HDMI 2.0 x 2+ DisplayPort x 2, Quad Video Outputs 4K playback (Dual Channel Memory Recommended) Integrated in CPU Audio Realtek ALC662/897/888S High Definition Audio Ethernet 2x Intel Gigabit LAN (DH670) 2x Intel 2.5GbE LAN (DH670 V2) Supports 10/100/1000 Mb/Sec. Support wake ON LAN (WOL) feature Storage Interface SATA 6.0Gb/s interface Onboard Connectors 1x 4pin fan connector 1x VGA(For PVG01 use) 1x 1x4 pin USB header(For WWN03 use) 1x SATA connector w/power 1x Front audio header 1x Auto power on header 1x RS232 voltage switch Front Panel 2x USB 3.2 Gen1 ports 2x USB 3.2 Gen2 ports 1x Microphone-In 1x Line-Out 1x Power-On button 1x Power LED 1x HD Back Panel 2x RJ45 LAN ports 2x HDMI port 2x Display port 2x USB 3.2 Gen1 ports 2x USB 3.2 Gen2 ports 1x RS232 1x RS232/RS422/RS485 1x External 4pin header 1x DC-in 2x Wireless Antenna fixture 1x Kensington lock Drive Bays 1x 2.5' HDD / SSD bay Dimensions 190(L) x 165(W) x 43(H) mm Power 120W Power Adapter Input:100- 240V AC 19V 6.32A Accessories VESA mount VESA Screw pack 120W adapter Expansion Slot 1x M.2 2280 Type M key socket 1x M.2 2230 Type E key socket OS Support Windows 10/11 64 bit O.S Linux
