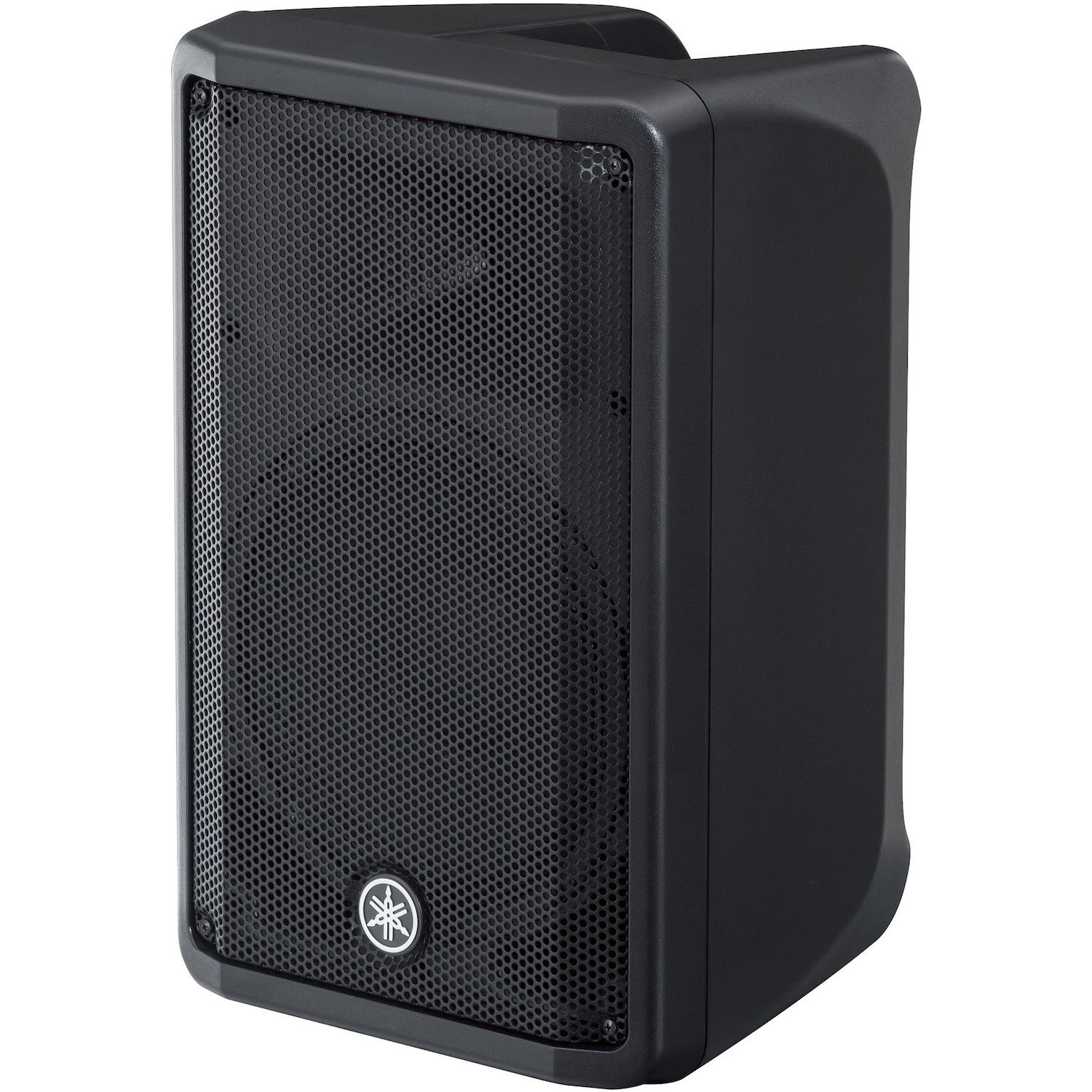

Yamaha DBR10 10 LF driver, 1 HF compression driver
* 700W, max 129dB SPL
* 2-way, Bi-amp powered speaker, Bass-reflex type
* 55Hz – 20kHz Frequency range (-10dB)
* Nominal coverage - 90° H, 60° V
* Diameter:10 cone, Voice Coil:2, Magnet:Ferrite
* Diaphragm:1, Type: 1 throat compression driver, Magnet:Ferrite
* INPUT1: Combo x1, INPUT2: Combo x 1 + RCA pin x 2 (Unbalanced)
* OUTPUT: XLR3-32 x 1 (CH1 Parallel Through or CH1+CH2 Mix)
* Fan cooling, 4 speeds
* Top Handle
* 35mm Pole Socket
* Net weight: 10.5 kg
